Workflows

Workflows (/app/workflows) lists graph workflows and workflow chains together with All | Draft | Live filters. One New workflow dialog creates either type. Graph shells live at /app/workflows/graph/{id}/…; chain shells at /app/workflows/chain/{slug}/…. Sidebar badge counts both. Nothing is auto-seeded.

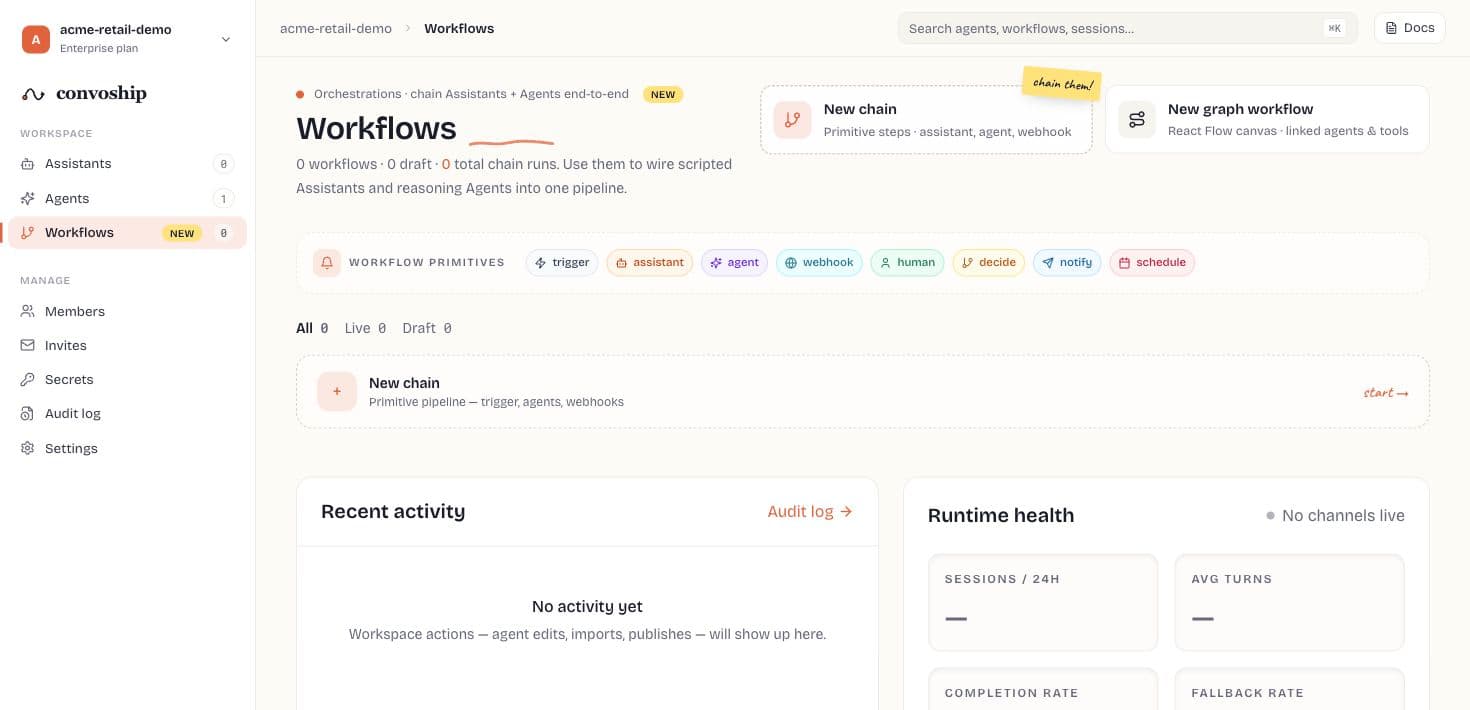

Landing page

• Orchestrations header with primitives legend (trigger, assistant, agent, decide, webhook, schedule, notify, human).
• chain them! design cue for composing chains.
• Unified cards — graph and chain rows share one grid; click opens the immersive shell default tab.

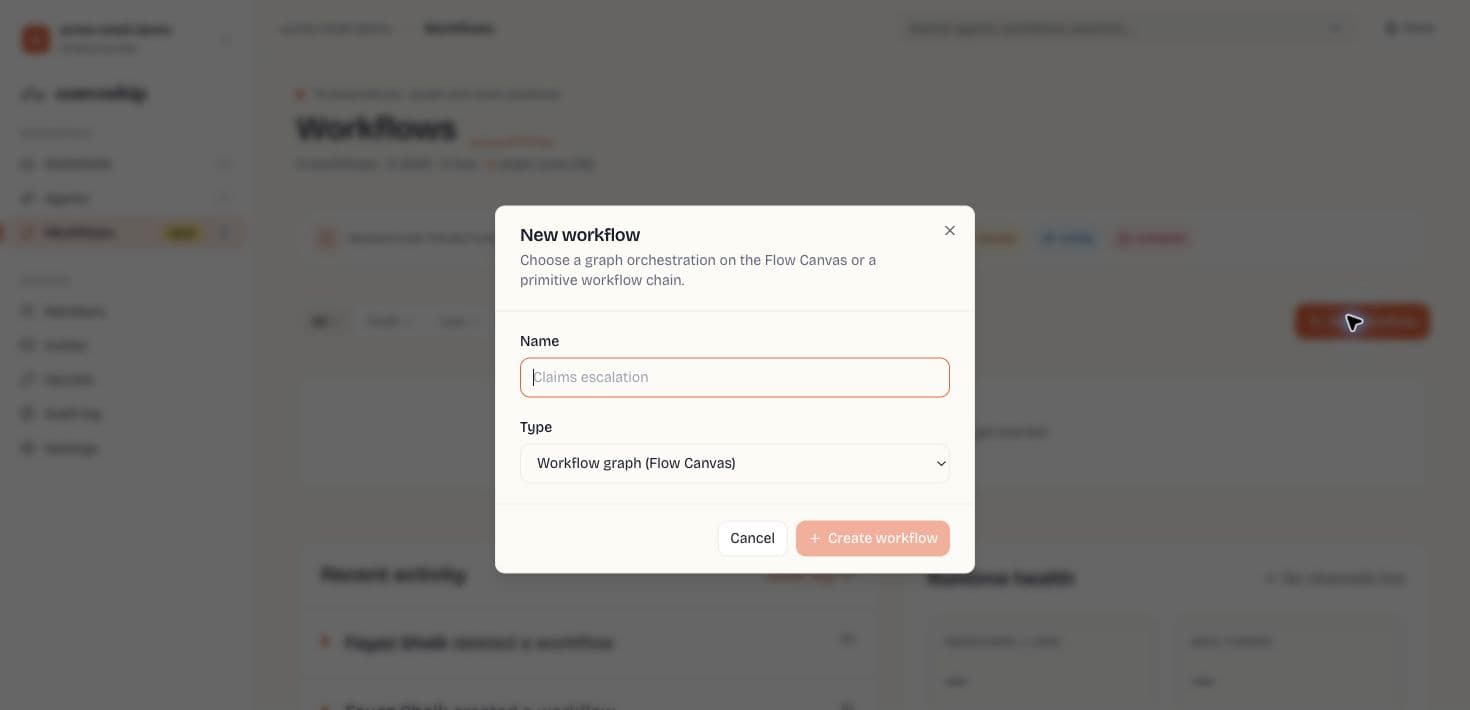

• New workflow — modal: name + type (Workflow graph | Workflow chain); POST /v1/workflows or POST /v1/workflow-chains.
• Filters — Draft/Live use graph publish state and chain status (draft | live | paused).

Access control

Workflow APIs use capability-based RBAC (mapped to workspace roles). Chain and graph routes no longer rely on coarse role checks alone.

Workflow chains

Implementation path

1. Choose a chain when the process can be described as ordered primitives; choose a graph workflow when visual routing and node-level branching matter.
2. Name every step for the business action it performs, then bind Assistants, AI Agents, tools, and webhook endpoints.
3. Add decide branches and human pauses before publish so exceptional paths are represented explicitly.
4. Run the chain or workflow simulator, inspect run history, and verify ingress HMAC before external callers are connected.
5. Set chains live only after the Deploy readiness panel clears every blocker.

Chains are edited in a dedicated form editor (not the React Flow canvas). PATCH /v1/workflow-chains/{slug} persists all fields. Run history is available per chain via GET /v1/workflow-chains/{slug}/runs and GET .../runs/{run_id}.

Chain primitives

• trigger — entry condition label
• assistant — invoke a published Assistant by label/slug match
• agent — invoke an AI Agent (playground runtime) by label
• decide — branch on a condition label (substring match on running output)
• webhook — outbound HTTP POST/PUT/PATCH (url, secret, retries in step config); secret also used for inbound HMAC verification
• human — pauses run as awaiting_human until POST .../runs/{run_id}/resume
• schedule — records deferred-execution intent (external scheduler)
• notify — email via Resend/SMTP/console to email_to in config

Chain run & ingress

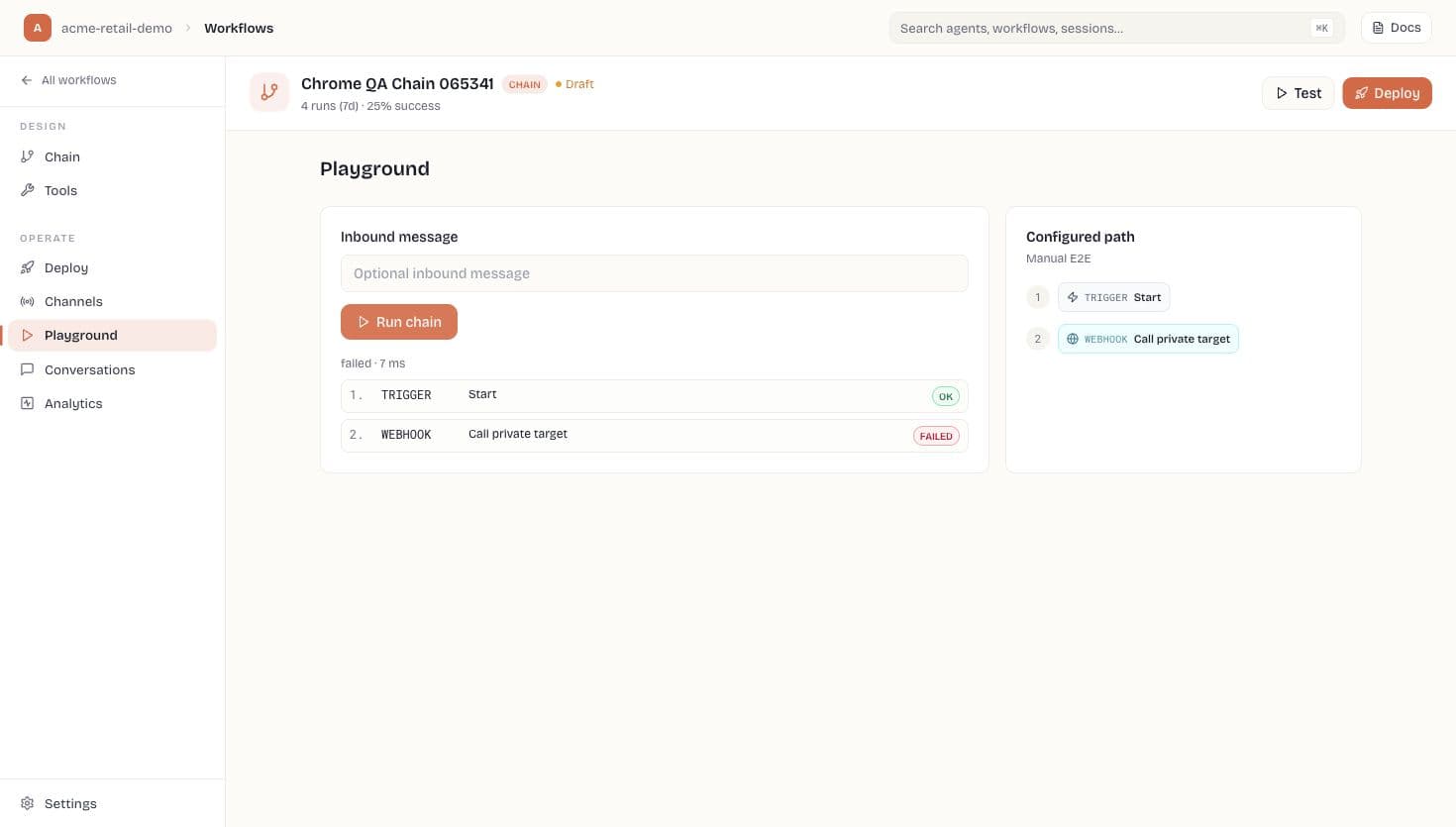

• POST /v1/workflow-chains/{slug}/run — studio test run (runtime.simulate, rate-limited)
• POST /v1/workflow-chains/{slug}/runs/{run_id}/resume — continue awaiting_human runs
• POST /v1/workflow-chains/{slug}/ingress — authenticated inbound webhook (HMAC + runtime.simulate)
• POST /v1/public/workflow-chains/{workspace_slug}/{chain_slug}/ingress — public inbound webhook (HMAC only, no cookie)
• POST/GET /v1/workflow-chains/{slug}/deployments — embed tokens scoped to a chain (workflow_chain_id on agent_deployments).
• Ingress and deployments require chain status live plus readiness validation; draft, paused, and invalid chains return 409.
• Channel connections may set workflow_chain_id; inbound omni-channel messages dispatch through execute_chain when the chain is live.
• Sign the raw JSON body with HMAC-SHA256 using the webhook step config.secret; send header X-Chain-Signature (hex or sha256=<hex>). Body: {"message": "..."}.

Legacy workflow graph

Graph workflows open at /app/workflows/graph/{id}/graph (Flow Canvas). Legacy /app/workflows/{id}/… URLs redirect into the graph shell. Draft graphs are saved with PUT /v1/workflows/{id}/graph (creates a new draft version). Publishing promotes the latest draft to a live version.

Unified workflow shell (graph and chain)

Publish & versions

• POST /v1/workflows/{id}/validate-publish — schema + runtime publish rules (Studio calls this before Publish)
• POST /v1/workflows/{id}/publish — promotes latest draft (workflow.publish)
• GET /v1/workflows/{id}/versions — list versions with limit/offset
• POST /v1/workflows/{id}/versions/{version_id}/restore — copy an older graph into a new draft
• Blocked node types at publish: script, datastore, set, human, parallel, wait
• Router/decision nodes must have at least one outgoing edge with condition.expr

Rate limits

Workspace Agent ops setting rpm_cap_per_agent applies per workflow id and per chain id for simulator starts, workflow turns, and chain run/resume/ingress (Redis-backed when Redis is available; 0 = unlimited). Additional slowapi limits apply on graph save, publish, restore, and chain endpoints.

Workflow vs single Assistant

API (summary)

# Workflow chains
GET/POST              /v1/workflow-chains
GET/PATCH/DELETE      /v1/workflow-chains/{slug}
POST                  /v1/workflow-chains/{slug}/run
GET                   /v1/workflow-chains/{slug}/runs
GET                   /v1/workflow-chains/{slug}/runs/{run_id}
POST                  /v1/workflow-chains/{slug}/runs/{run_id}/resume
POST                  /v1/workflow-chains/{slug}/ingress
POST                  /v1/public/workflow-chains/{workspace_slug}/{chain_slug}/ingress

# Legacy graph workflows
GET/POST              /v1/workflows
GET/PATCH/DELETE      /v1/workflows/{id}
PUT                   /v1/workflows/{id}/graph
POST                  /v1/workflows/{id}/validate-publish
POST                  /v1/workflows/{id}/publish
GET                   /v1/workflows/{id}/versions
POST                  /v1/workflows/{id}/versions/{version_id}/restore

# Workflow simulator & history
POST                  /v1/runtime/workflows/{id}/sessions
POST                  /v1/runtime/workflows/sessions/{session_id}/turns
GET                   /v1/runtime/workflows/{id}/sessions?limit=&offset=

See Workflow canvas and Chain editor pages for node types, edge routing, and simulator behavior. Public workflow channel traffic uses deployment tokens via /v1/public/runtime/* (see Channels & deploy).
